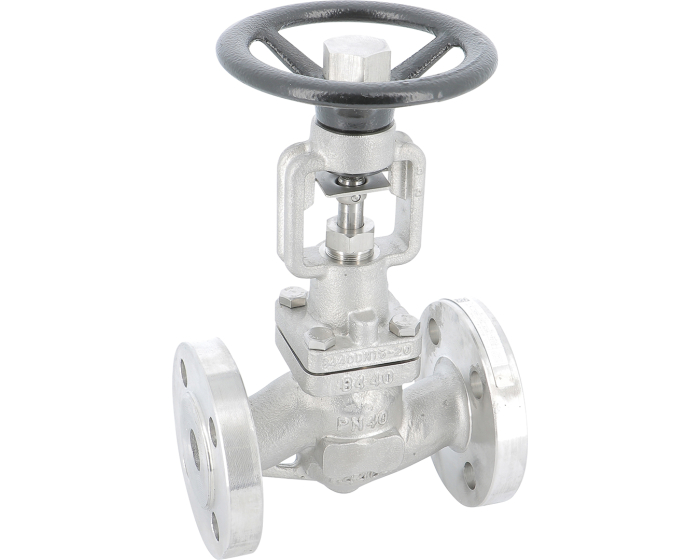

The series 472 globe valve is made of stainless steel, flanged PN40/16, EN 558 series 1, with bellow, non-rising stem, conical plug and seat, bolted bonnet and screwed gland. For corrosive fluids, hydrocarbons, and heat transfer fluids.
| Specification | Value |
|---|---|
| CE risk category | III Module H |
| Brand | ICP VALVES |
| Opening device | Handwheel |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 130.0 |
| Sealing | Metal / Metal |
| Fluid | Acids |
| Kv (m³/h) | 3.8 |
| Body material | Stainless steel CF8M (1.4408) |
| PS (bar) | 40 |
| Connections | Flanged PN10/40 |
| TS max (°C) | 400 |
| TS min (°C) | -50 |
| Warranty period | 2 years |
| Type of stem | Non-rising |
| CE | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/40 Stainless steel CF8M (1.4408) DN15 - 1/2'' | 472015 | S1010781 |
€262.19
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) DN20 - 3/4'' | 472020SF | S1010782 |
€315.03
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) DN25 - 1'' | 472025 | S1010783 |
€394.94
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) DN32 - 1''1/4 | 472032 | S1010784 |
€473.20
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) DN40 - 1''1/2 | 472040 | S1010785 |
€637.67
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) DN50 - 2'' | 472050 | S1010786 |
€735.93
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) 65-8 Holes | 472065 | S1010787 |
€1,209.11
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) DN80 - 3'' | 472080 | S1010788 |
€1,541.11
(excl. btw)
|
add to cart |
| Flanged PN10/40 Stainless steel CF8M (1.4408) DN100 - 4'' | 472100 | S1010789 |
€2,015.91
(excl. btw)
|
add to cart |
